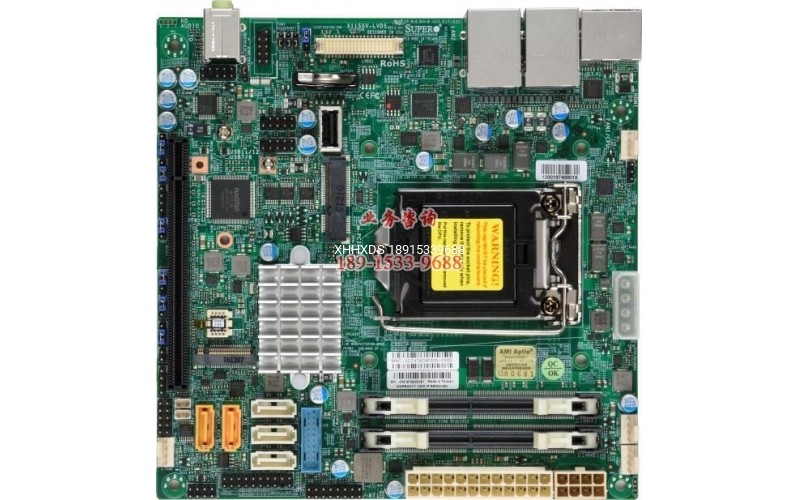

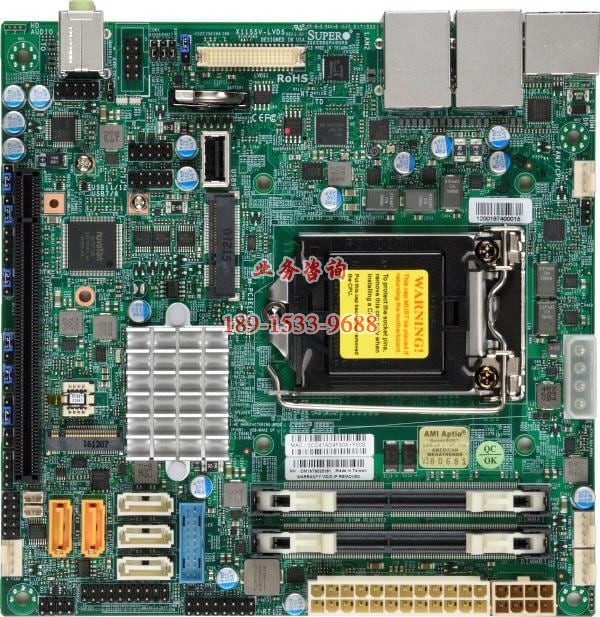

超微主板X11SSV-LVDS

超微主板X11SSV-LVDS

我们专注AI 计算、仿真计算与GPU多卡服务器

Key Features

  1. Single socket H4 (LGA 1151) supports
    Intel 7th/6th Gen. Core i7/i5/i3 series,
    Intel Celeron? and Intel Pentium?

  2. Intel Q170 Express chipset

  3. Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots

  4. 1 PCI-E 3.0 x16, Mini-PCI-E (mSATA support)
    M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/80

  5. 1 HDMI, 1 DP, 1 LVDS, Intel HD Graphics 3 independent displays

  6. Dual GbE LAN w/ Intel i219LM + i210AT

  7. 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10

  8. Supports 12V DC power input

  9. AMT, vPro

  10. 2 SATA DOM, 1 COM,TPM header,
    ALC 888S HD Audio


Product SKUs

MBD-X11SSV-LVDS

  • X11SSV-LVDS



Physical Stats

Form Factor

  • Mini-ITX

Dimension

  • 6.7" x 6.7" (17.02cm x 17.02cm)



Processor

CPU

  • Intel Celeron?, Intel Pentium?, Intel 6th Generation Core? i3 series, Intel 7th Generation Core? i3 series, Intel 6th Generation Core? i5 series, Intel 6th Generation Core? i7 series, Intel 7th Generation Core? i5 series, Intel 7th Generation Core? i7 series

  • Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 91W TDP



System Memory

Memory Capacity

  • 2 DIMM slots

  • Up to 32GB SODIMM, DDR4-2400MHz

Memory Type

  • 2400/2133/1866MHzDDR4 SODIMM SDRAM 72-bit, 260-pin gold-plated

DIMM Sizes

  • 4GB, 8GB, 16GB

Memory Voltage

  • 1.2V



On-Board Devices

Chipset

  • Intel Q170 Express

SATA

  • Intel Q170 Express controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Audio

  • ALC 888S HD Audio

Graphics

  • Intel HD Graphics

Network Controllers

  • Single LAN with Intel PHY I219LM LAN controller

  • Single LAN with Intel Ethernet Controller I210-AT
