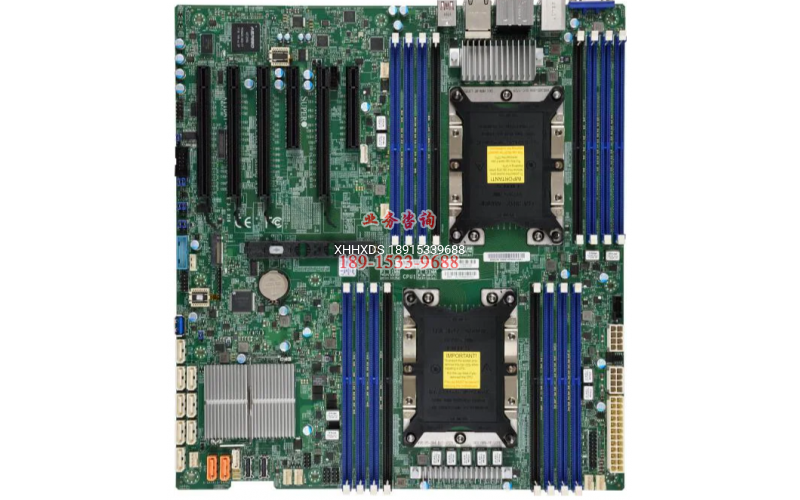

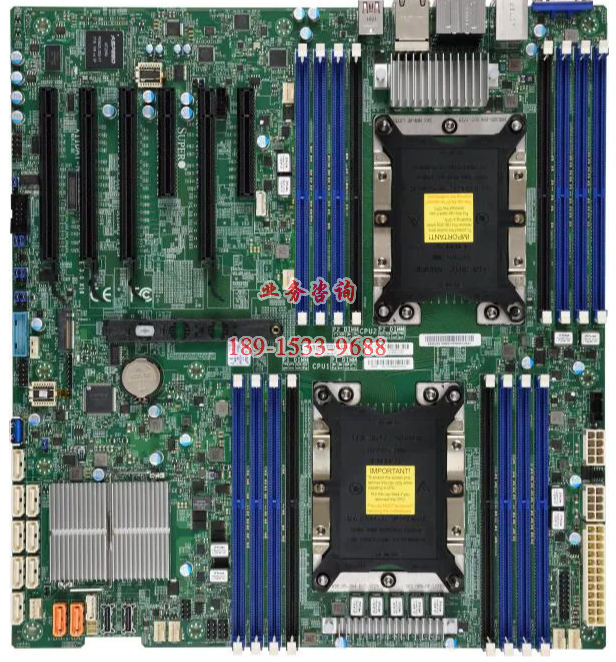

超微服务器主板 X11DAI-N 支持第一代至强 LGA3647

超微服务器主板 X11DAI-N 支持第一代至强 LGA3647


Key Features


    • 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors

    • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

  2. Intel C621


    • Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;

    • Up to 2TB Intel Optane? DC Persistent Memory in memory mode (Cascade Lake only).


    • 4 PCIe 3.0 x16,

    • 2 PCIe 3.0 x8,

    • 2 PCIe 3.0 NVMe x4 Internal Port(s)

    • M.2 Interface: PCIe 3.0 x4

    • M.2 Form Factor: 2260, 2280, 22110

    • M.2 Key: M-Key

  5. Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with GbE from C621

  7. 1 VGA port

Product SKUs
MBD-X11DAi-N
Physical Stats
Form Factor

  • E-ATX

Dimension

  • 12" x 13" (30.48cm x 33.02cm)

Processor
CPU

  • 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors

  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s

System Memory
Memory Capacity

  • 16 DIMM slots

  • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz

  • Up to 2TB Intel Optane? DC Persistent Memory in memory mode (Cascade Lake only).

Memory Type

  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • LRDIMM: 64GB, 128GB

  • RDIMM: 64GB, 128GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

  • Intel C621

SATA

  • Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Audio

  • 7.1 HD Audio

Graphics

  • 1 ASPEED AST2500 BMC port(s)

Network Controllers

  • Dual LAN with GbE from C621

Input / Output
USB

  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)

  • 4 USB 3.2 Gen2 port(s) (1 rear type C; 2 rear; 1 rear type A)

Video Output

  • 1 VGA port(s)

Serial Port
