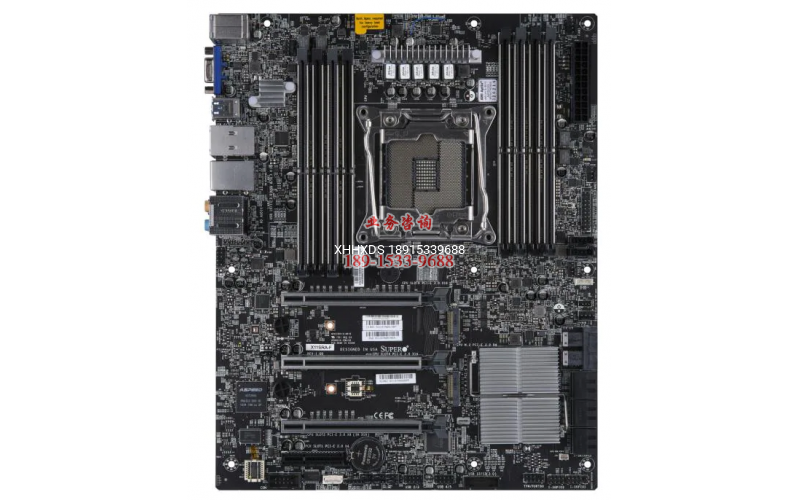

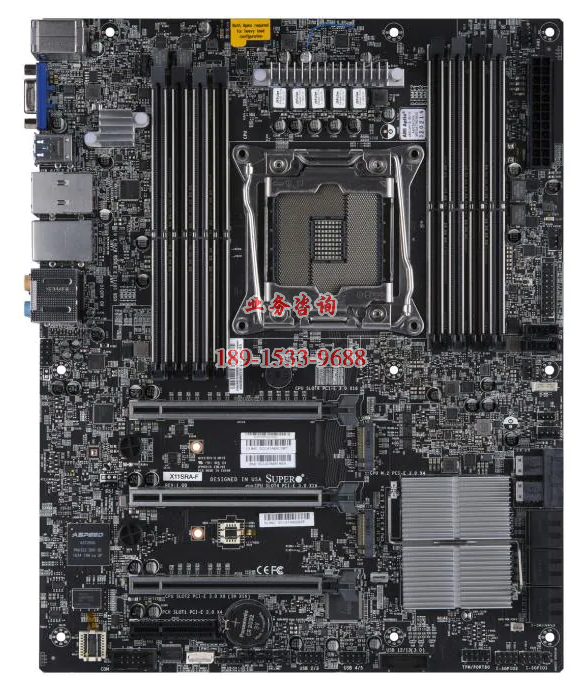

超微主板 X11SRA-F LGA 2066 支持志强 W 2200系列

超微主板 X11SRA-F LGA 2066 支持志强 W 2200系列


Key Features

  1. Intel XeonW-2100 Processors, Intel XeonW-2200 Processors
    Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP

  2. Intel C422

  3. Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)

  4. 3 PCIe 3.0 x16 (8/16/16, 48 lanes) 1 PCIe 3.0 x4 M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key (RAID 0, 1) *M-Key for SSD and Optane (up to Intel POR). Intel VROC Hardware License Key is needed to enable RAID function. U.2 Interface: 2 PCIe 3.0 x4

  5. Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    *iRST enabled, only SATA2 to SATA5 support RAID.

  6. Single LAN with Intel Ethernet Controller I210-AT
    Single LAN with Aquantia 5G LAN chip AQC108

  7. 1 VGA port,
    ***VGA Port is default set to support IPMI

Product SKUs
MBD-X11SRA-F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU
System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 1TB ECC LRDIMM, DDR4-2666MHz; Up to 512GB ECC RDIMM, DDR4-2666MHz

Memory Type

  • 2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, RDIMM SDRAM 72-bit, 288-pin

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel C422

SATA

  • Intel C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Audio

  • ALC 1220 7.1 HD Audio

Network Controllers

  • Single LAN with Intel Ethernet Controller I210-AT

  • Single LAN with Aquantia 5G LAN chip AQC108

0
0

关联内容

Input / Output
USB

  • 6 USB 2.0 port(s) (4 via header; 2 rear)

  • 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)

  • 2 USB 3.2 Gen2 port(s) (2 type A)

Video Output

  • 1 VGA port(s)
