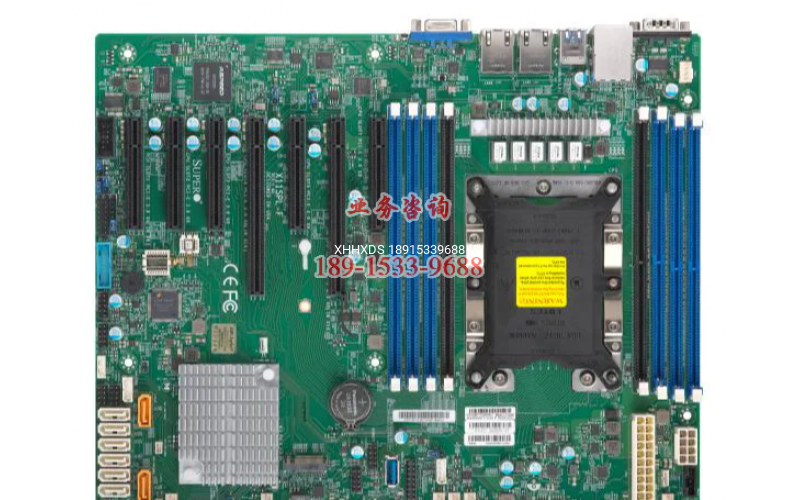

超微主板 X11 SPL-F 支持志强一代 LGA 3647

超微主板 X11 SPL-F 支持志强一代 LGA 3647


Key Features

  1. 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP

  2. Intel C621 Chipset


    • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots;

    • Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)


    • Expansion slots:

    • 2 PCIe 3.0 x8 (in x16),

    • 4 PCIe 3.0 x8,

    • 1 PCIe 3.0 x4 (in x8)


    • M.2 NGFF connector

    • M.2 Interface: PCIe 3.0 x4 and SATA

    • Form Factor: 2280, 22110

    • Key: M-Key

  6. 2 GbE LAN ports

  7. 8 SATA3 (6Gbps) ports

  8. I/O: 1 VGA, 2 COM, TPM header

  9. 2 SuperDOM with built-in power

  10. 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)

Product SKUs
MBD-X11SPL-F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU

  • 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors

  • Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP

Core

  • Up to 28 cores

Note

  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz

  • Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)

Memory Type

  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • LRDIMM: 32GB, 64GB, 128GB

  • RDIMM: 8GB, 16GB, 32GB, 64GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel C621

SATA

  • Intel C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500

Graphics

  • 1 ASPEED AST2500 BMC port(s)

Network Controllers
