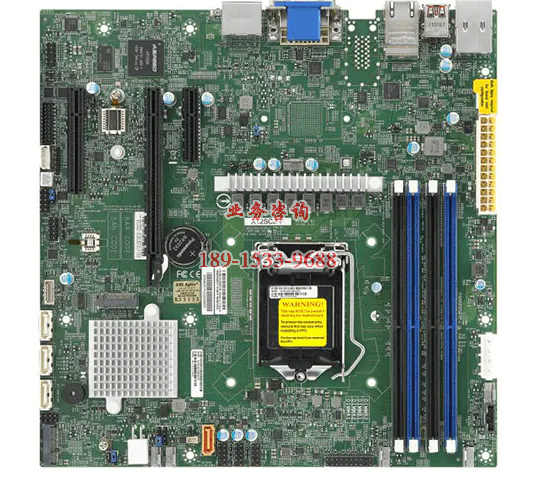

超微主板 X12SCZ-QF 支持酷睿10-11代LGA 1151

超微主板 X12SCZ-QF 支持酷睿10-11代LGA 1151


Key Features

  1. 11th/10th Generation Intel Core? i9/Core? i7/Core?i5/Core?i3/Pentium?/Celeron? Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP

  2. Intel Q470E

  3. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

  4. 1 PCIe 3.0 x16,
    1 PCIe 3.0 x4 (in x8 slot),
    1 PCIe 3.0 x4
    1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110
    1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230

  5. Single LAN with Intel PHY I219LM LAN controller
    Single LAN with Intel Ethernet Controller I210-AT

  6. Intel Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port

Product SKUs
MBD-X12SCZ-QF
Physical Stats
Form Factor

  • Micro-ATX

Dimension

  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor
CPU

  • 11th/10th Generation Intel Core? i9/Core? i7/Core? i5/Core? i3/Pentium?/Celeron? Processor

  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

  • A graphic integrated CPU is required to have onboard video from the DVI and DP ports

Core

  • Up to 10 cores

Note

  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCZ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.

System Memory
Memory Capacity

  • 4 DIMM slots

  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz

Memory Type

  • 2933/2666/2400/2133 MT/s

DIMM Sizes

  • 4GB, 8GB, 16GB, 32GB

Memory Voltage

  • 1.2V

On-Board Devices
Chipset

  • Intel Q470E

SATA

  • Intel Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2500 BMC

Audio

  • ALC 888S HD Audio

Graphics

  • 1 Intel HD Graphics port(s)

  • 1 ASPEED AST2500 BMC port(s)

Network Controllers 0
