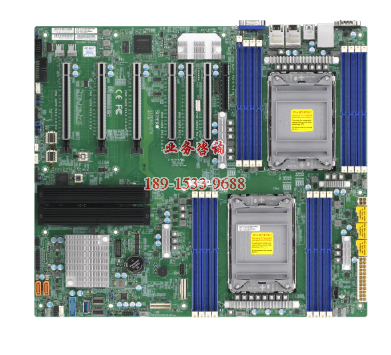

超微主板 X12DPG-QT6 支持第三代至强 LGA4189

Key Features

1. 3rd Gen Intel Xeon Scalable processors, Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

2. Intel C621A

3. Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor? 5, Watchdog

4.


• Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

• Up to 6TB Intel Optane? Persistent Memory 200 Series, in 16 DIMM slots;

• Up to 6TB Intel Optane? DC Persistent Memory in memory mode.

5.


• 6 PCIe 4.0 x16,

• 1 PCIe 4.0 x8

• M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1

• M.2 Form Factor: 2242/2260/2280/22110

• M.2 Key: M-Key

6. Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

7. Dual LAN with Intel X550 10GBase-T Ethernet Controller

8. Integrated IPMI 2.0 and KVM with Dedicated LAN

9. 5 USB 3.0 ports, 4 USB 2.0 ports

10. HD Audio with optical S/PDIF
