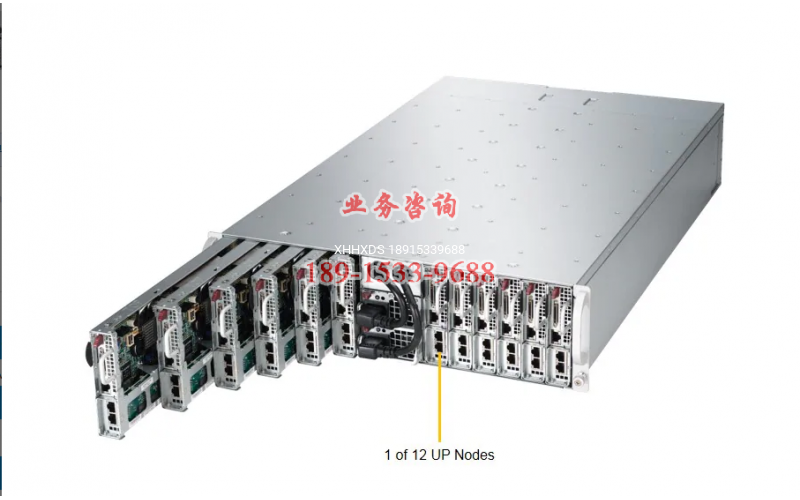

超微准系统 SuperServer 5038ML-H12TRF

超微准系统 SuperServer 5038ML-H12TRF


Key Features (per node)1. Single socket H3 (LGA 1150) supports
    Intel XeonE3-1200 v3/v4, 4th/5th
    gen. Core? i3, Pentium, Celeron
    processors; Socket H3 (LGA 1150)2. 2x 3.5 or 4x 2.5" SATA3 HDDs
    with Optional kit3. Up to 32GB DDR3 VLP ECC UDIMM
    1600/1333MHz support in 4 sockets4. 2x GbE LAN (Intel i350), 1x Dedicated
    LAN for IPMI Remote Management5. 1x VGA, 1x COM ports, 2x USB 2.0
    (with KVM dongle)6. 4x 9cm heavy duty hot-swap fans with
    optimal cooling zone (per system)7. 1620W Redundant power supplies
    Platinum Level Certified
    (per system)


  1. Single socket H3 (LGA 1150) supports
    Intel XeonE3-1200 v3/v4, 4th gen.
    Core i3, Pentium, Celeron processors
    Up to 4 cores and 8MB LLC

  2. Intel C224 Express PCH

  3. Up to 32GB DDR3 ECC 1600MHz VLP-UDIMMs in 4 sockets

  4. 4 SATA (6Gbps) w/ RAID 0, 1, 10, 5

  5. 1 PCI-E 3.0 x8 in Micro-LP

  6. 2 USB 2.0, 1 COM port, VGA via KVM connector

  7. Integrated IPMI 2.0 with KVM and Dedicated LAN

  8. SATA DOM power connector support

  9. TPM header

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.

SuperServer

  • SYS-5038ML-H12TRF (Black)




Motherboard

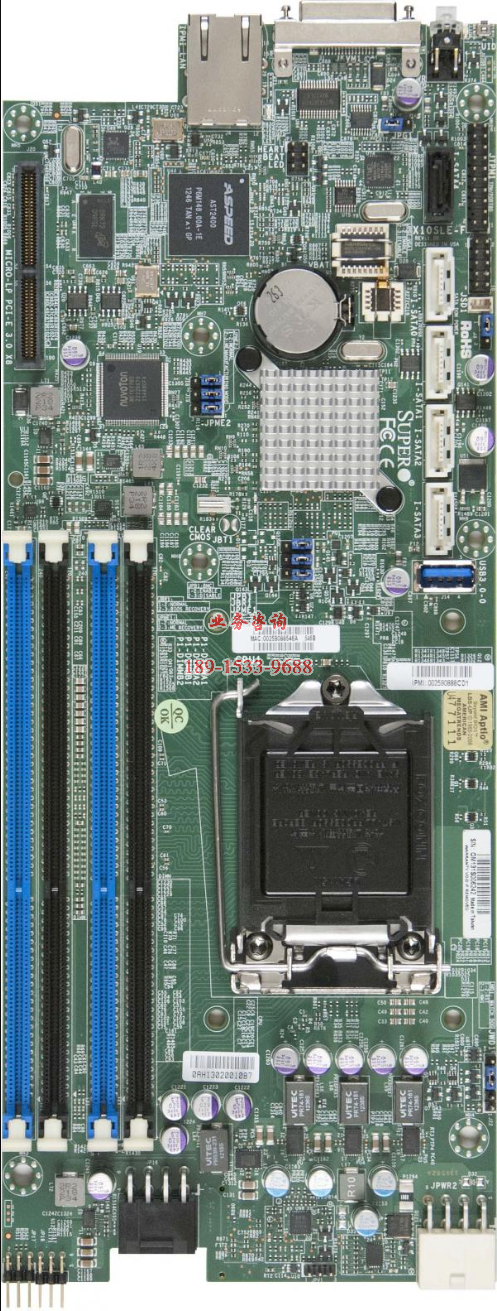

Super X10SLE-F




Alternative SKU

SuperServer

  • SYS-5038ML-H12TRFG (Black)

MB + Chassis

  • MBD-X10SLE-HF + CSE-939H-R1K63B

Features

  • Support Intel VHD Feature (With C226 PCH chipset)



Processor/Cache

CPU

  • Intel Xeonprocessor E3-1200 v3/v4 family, Intel 4th/5th Gen Core? i3, Pentium, Celeron processors

  • Up to 80W

  • Socket H3 (LGA 1150)

<

0
0

关联内容



System Memory (per node)

Memory Capacity

  • 4x 240-pin DDR3 DIMM slots

  • Supports up to 32 GB DDR3 VLP ECC Un-Buffered memory (UDIMM)

Memory Type

  • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs

DIMM Sizes

  • 8GB, 4GB, 2GB, 1GB

Memory Voltage

  • 1.5 V, 1.35 V
