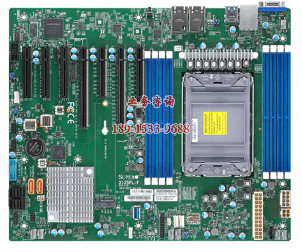

超微服务器主板 X12SPl-F 支持第三代至强 LGA4189

超微服务器主板 X12SPl-F 支持第三代至强 LGA4189


Key Features

  1. 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

  2. Intel C621A

  3. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 2TB Intel Optane? Persistent Memory, in 8 DIMM slots

  4. 2 PCIe 4.0 x8,
    1 PCIe 4.0 x16,
    1 PCIe 4.0 x8 (in x16 slot)
    3 PCIe 3.0 x8
    M.2 Interface: 1 SATA/PCIe 3.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key

  5. Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

  6. Dual LAN with Intel i210 Gigabit Ethernet Controller

Product SKUs
MBD-X12SPL-F
Physical Stats
Form Factor

  • ATX

Dimension

  • 12.1" x 10" (30.73cm x 25.4cm)

Processor
CPU

  • 3rd Gen Intel Xeon Scalable processors

  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Core

  • Up to 40 cores

System Memory
Memory Capacity

  • 8 DIMM slots

  • Up to 2TB Intel Optane? Persistent Memory 200 Series

  • Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz

Memory Type

  • 3200/2933/2666 MT/s ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage

  • 1.2V

Error Detection

  • Corrects single-bit errors

On-Board Devices
Chipset

  • Intel C621A

SATA

  • Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

  • ASPEED AST2600 BMC

Graphics

  • 1 ASPEED AST2600 BMC port(s)

Network Controllers

  • Dual LAN with Intel i210 Gigabit Ethernet Controller

Input / Output
